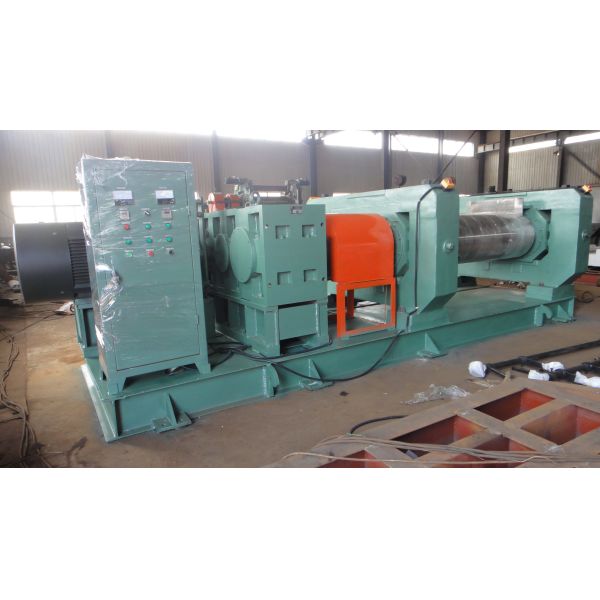

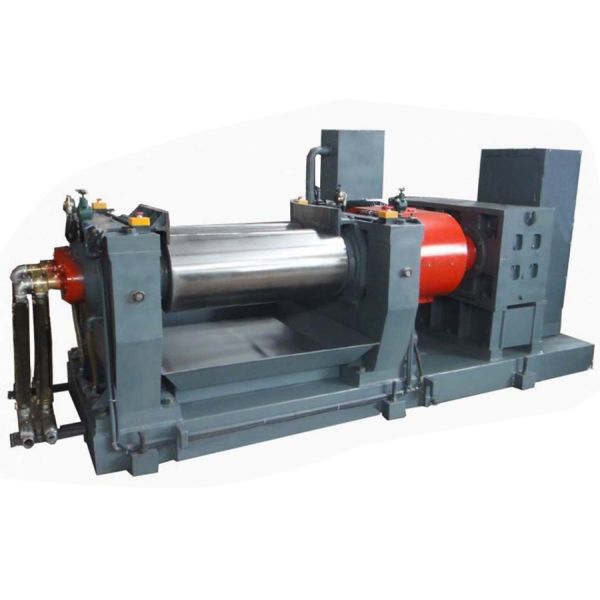

XK-660 Two Roller Rubber Mixing Mill with High Quality
Product Overview
XK-660 Two Roller Rubber Mixing Mill / Open Mill Rubber Mixing Machine
Product Introduction
- The transmission system adopts hard tooth face deceleration machine with compact structure, low noise, high efficiency, and long service life
- The machine features a complete base for convenient installation
- Customized machines available according to customer requirements
Salient Features
- Superior mixing performance
- Low operating cost with high productivity
- Compact construction for maximum floor utilization
- Latest technology update meeting current world standards
- Maintenance free operation
- Reliable and experienced service backup
- Easy to install and ready to run
- No continuous lubrication required, saving on lubrication cost, wear & tear, and maintenance
- Auto reversing electric panel
- Simple and easy maintenance
Technical Features
- Roller Material: Chilled Alloy Cast Iron
- Roller Hardness: 68-75 HRC
- Gear Material Hardness: 65-70 HRC
- Cooling System: Water Cooling
- Control Mode: Manual or automatic optional
- Compact structure with low noise operation
- Different types of reducer available
Product Gallery
Technical Specifications
| Model |
XK-230 |
XK-250 |
XK-300 |
XK-360 |
XK-400 |
XK-450 |
XK-560 |
XK-550B |
XK-660 |
| Working Diameter of rolls (mm) |
230 |
250 |
300 |
360 |
400 |
450 |
560/510 |
550 |
660 |
| Working Length of Rolls (mm) |
600 |
620 |
750 |
900 |
1000 |
1200 |
1530 |
1500 |
2130 |
| Front Roll Surface Speed (m/min) |
10.21 |
14.1 |
15.1 |
16.25 |
18.65 |
24.26 |
27.72 |
27.94 |
28.6 |
| Friction Ratio |
1:1.19 |
1:1.17 |
1:1.25 |
1:1.25 |
1:1.27 |
1:1.2 |
1:1.22 |
1:1.24 |
1:1.09 |
| Max. nip (mm) |
7 |
8 |
10 |
10 |
10 |
15 |
15 |
15 |
15 |
| Capacity per Batch(kg) |
6-10 |
8-15 |
15-20 |
20-25 |
18-35 |
25-50 |
35-50 |
50-60 |
165 |
| Motor Power (kw) |
15 |
18.5 |
22 |
30 |
37 |
55 |
90 |
110 |
245 |
| Dimensions L (mm) |
2800 |
3400 |
3400 |
3780 |
4350 |
5200 |
5845 |
5870 |
7465 |
| Dimensions W (mm) |
1200 |
1500 |
1500 |
1850 |
1850 |
2380 |
2284 |
2475 |
3662 |
| Dimensions H (mm) |
1120 |
1500 |
1550 |
1750 |
1785 |
1840 |
1978 |
2045 |
2080 |
Packing and Shipping
Equipment painting completed before delivery, wrapped with stretch film to avoid rubbing the paint off the surface. Wooden packaging can be customized. Key parts, such as electronic control box, are wrapped by shockproof packaging materials and packed in wooden cases.
About Our Company
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd. is a Chinese manufacturer established in 2007 with over 10 years of experience in making various rubber machines. The company holds ISO 9001:2015, SGS, and CE certificates.
Our factory specializes in rubber kneader/rubber mixing mill; various plate vulcanizing press; 2 roll/3 roll/4 roll rubber calender; rubber batch off cooler; waste tire recycling line; reclaimed rubber production line; conveyor belt production line; rubber seals extruding & vulcanizing line, etc.
Our machinery has been exported to America, Mexico, India, Vietnam, South Africa, Singapore, Malaysia, Indonesia, Australia, Sri Lanka and many other countries and regions.
Our Services
- Our engineers can design target machines for customers and send drawings for confirmation
- During production, we provide progress photos for customer tracking
- Complete documentation including packing list, commercial invoice, and bill of lading provided after delivery
- Free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing available
Frequently Asked Questions
What does your factory do regarding quality control?
We pay much importance to quality control from the very beginning to the end of production. Every machine is fully assembled and carefully tested before shipment.
What's the machine quality guarantee?
Quality guarantee time is one year. We choose world famous brand components to keep our machine in perfect working condition.
Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the installation cost. Small machines usually take 2-3 days. Big production lines usually take about 30 days.
How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as discussed and confirmed in the order. The core of our company culture is innovation, quality, integrity and efficiency. We have had many successful cooperations with world famous rubber production manufacturers.
How can we go to your side?
We are located in Qingdao City, Shandong province, China. The nearest airport is Qingdao Jiaodong airport. We will pick you up at the airport.
