Factory Direct Supply Two Roll Open Mixing Mill & Rubber Mixing Mill
Factory Direct Supply Two Roll Open Mixing Mill & Rubber Mixing Mill with CE / ISO9001 Certification
- Automatic thin oil lubrication system with labyrinth seals to effectively prevent oil leakage
- Operation panel conveniently positioned within operator's easy reach
- All electrical wiring fully connected and tested prior to factory shipment
- Integrated base design eliminates requirement for on-site foundation construction
Reference Photos
Product Description
Application:
This two roll open mill is mainly used for plasticating and mixing of rubber and plastication, warming and sheeting rubber compound, cracking and refining of reclaimed rubber.
Structural Features:
- The open mill's roll is made of LTG-H alloy chilled cast iron
- The open mill speed reducing machine adopts hard tooth design, with low running noise and long service life
- Special refining seal structure design eliminates lubricating oil leakage
- Human-oriented design with steam-style block rubber board and turbine tapping rubber device
- Operating system conveniently designed on the machine
- Can be equipped with hydraulic or mechanical device for automatic rubber material mixing
- Roll nip adjustable using manual or electrical mode

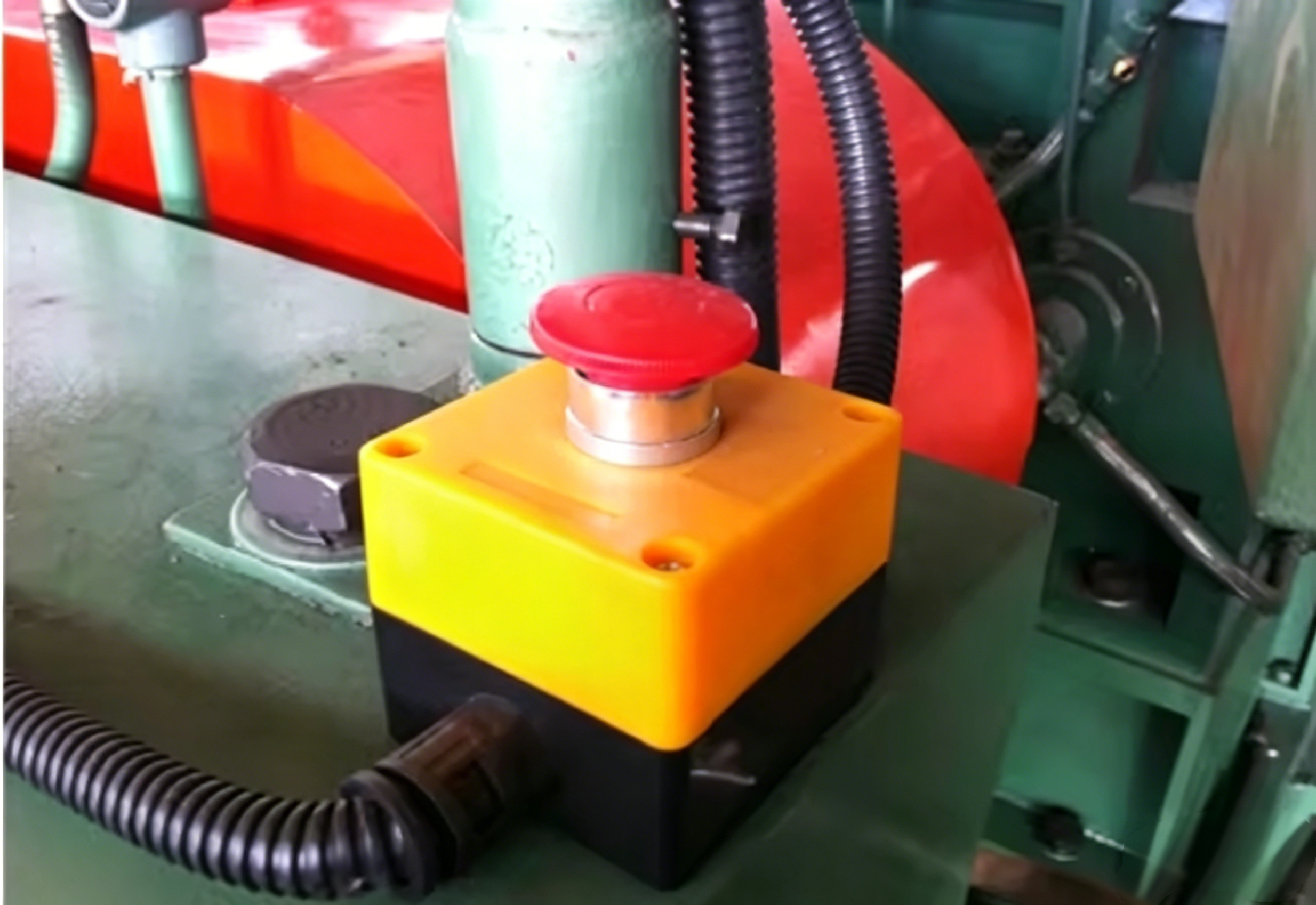

- Emergency button installed for staff and equipment safety
- All mills checked through 8 hours non-stop full load operation before shipment
A mill is typically assembled on a steel foundation plate, set on rubber-pads or sound-metals adjustable to isolate noise levels and avoid tensions on the mill structure. Precise leveling is crucial for smooth operation.
Technical Specifications
| Model |
Roller (DxL) (mm) |
Front Roller Linear Speed (m/min) |
Friction Ratio |
Motor Power (KW) |
Overall Dimension (LxWxH) (mm) |
| XK-160 | φ160x320 | 8.95 | 1:1.37 | 5.5 | 1500x750x1500 |
| XK-230 | φ230x600 | 10.21 | 1:1.19 | 15 | 2800x1200x1120 |
| XK-250 | φ250x620 | 14.1 | 1:1.17 | 18.5 | 3400x1500x1650 |
| XK-300 | φ300x750 | 15.1 | 1:1.25 | 22 | 3500x1600x1700 |
| XK-360 | φ360x900 | 16.25 | 1:1.25 | 30 | 3780x1850x1750 |
| XK-400 | φ400x1000 | 18.65 | 1:1.27 | 37 | 4350x1850x1785 |
| XK-450 | φ450x1200 | 24.26 | 1:1.27 | 55 | 5200x2380x1840 |
| XK-560 | φ560xφ510x1530 | 27.72 | 1:1.2 | 90 | 5845x2284x1978 |
| XK-550B | φ550x1500 | 27.94 | 1:1.22 | 110 | 5870x2475x2045 |
| XK-610 | φ610x2000 | 28.42 | 1:1.17 | 160 | 7070x2290x1840 |
| XK-660 | φ660x2130 | 28.6 | 1:1.24 | 245 | 7465x3662x2080 |
| XK-710 | φ710x2200 | 30 | 1:1.09 | 280 | 7500x3500x1800 |
Our Services
- Custom machine design with engineering drawings for customer confirmation
- Production progress photos provided for customer tracking
- Complete documentation including packing list, commercial invoice, and bill of lading
- Free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing
- Overseas engineer service and worker training for machine operation
Frequently Asked Questions
1. Delivery time of the rubber machines?
This is specially designed machine according to your specific requirement. From engineer designing to production completion, it needs about 25 to 35 days.
2. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.
3. What's the machine quality guarantee?
Quality guarantee time is one year. We choose world famous brand components to keep our machine in perfect working condition.
4. Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of installation. Small machine usually takes within 2-3 days. Big plant usually takes about 30 days.
5. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation, quality, integrity and efficiency. We have extensive cooperation with world famous rubber production manufacturers.
6. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Liuting airport. We will pick up you at the airport.
