Product instruction

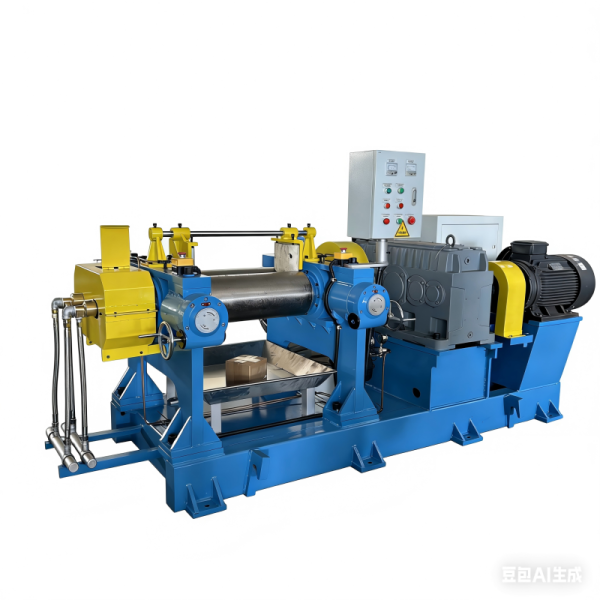

Two-Roll Open Mixing Mill (Open Mill) is essential processing equipment in rubber industry. It is mainly applied for mastication, mixing, thermal refining and sheeting of raw rubber and rubber compounds. Two rollers rotate reversely at different linear speeds to generate shear force, realizing plasticization and uniform blending of rubber materials.
Technical data
型号
Model |
辊筒直径*长度
Roller(D*L)(mm) |
前辊线速度
Front Roller Linear Speed(m/min) |
辊筒速比
Speed Ratio |
电动机功率
Moter Power(kw) |
| XK-160 |
Φ160*320 |
8.95 |
1:1.37 |
5.5 |
| XK-230 |
Φ230*600 |
10.21 |
1:1.19 |
15 |
| XK-250 |
Φ250*620 |
14.1 |
1:1.17 |
18.5 |
| XK-300 |
Φ300*750 |
15.1 |
1:1.25 |
22 |
| XK-360 |
Φ360*900 |
16.25 |
1:1.25 |
30 |
| XK-400 |
Φ400*1000 |
18.65 |
1:1.27 |
37 |
| XK-450 |
Φ450*1200 |
24.26 |
1:1.27 |
55 |
| XK-560 |
Φ560*Φ510*1530 |
27.72 |
1:1.2 |
90 |
| XK-550B |
Φ550*1500 |
27.94 |
1:1.22 |
110 |
| XK-610 |
Φ610*2000 |
28.42 |
1:1.17 |
160 |
| XK-660 |
Φ660*2130 |
28.6 |
1:1.24 |
246 |
| XK-710 |
Φ710*2200 |
30 |
1:1.09 |
280 |
Product advantages
- It features excellent plasticization and uniform rubber mixing.
- The roller gap adjustment is flexible, and the machine runs stably.
- Simple structure brings easy maintenance and low failure rate.
Qingdao Shun Cheong Rubber Machinery Manufacturing Co,LTD is located in Qingdao west coast new economic distrect,witch is a high-tech enterprise “specializing and New “ ENterprise,Nation"High-tech"Enterprise,etc. has been achieved,trademark “顺富昌" registered, and has passed ISO9001:2015 quality system certification , Swiss SGS certification and CE export certication . All the machines are designed with 3D software and are not only sold all over the country ,but also exported to the United States ,Britain ,Russia , the Netherlands , Thailang ,Malaysia , Indonesia , Chile , Mexico , Uzbekistan , France and many other countries and regions .
The main products of our company including new banbury mixer , rubber mixing mill ,vulcanizing press , rubber calender , batch of cooler , rubber kneader , forced feeding straining extruder ,new waste tire recycling line , reclaimed rubber equipment etc . , and can design and manufacture various special rubber machinery according to customer requirements.
Certification
Our Services
- Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost
- In the process of production, we will take photos and send to customers for their track the progress.
- Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
- We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
- We supply overseas engineer service and help to train your workers to operate the machine.
